GitLab Runner環境をCloudFormationでつくる
CloudFormationでGitLab Runner環境を作ったときのメモです。
前提 #link
自分には以下の前提がありました。
GitLabはすでにEC2で動いている
大きめのインスタンスを常時動かすともったいないのでAutoScalingしたい
GitLabはIPアドレス制限していて、そのレベルを下げたくない
GitLabのいるVPCはピアリング接続等でプライベートIPアドレスに空きがない
AutoScaling #link
GitLabのAWSでAutoScalingさせるドキュメントを読みました。
上のドキュメント内でbastion instanceと呼ばれているマシンがジョブ一覧をポーリングし、ジョブがあればアイドル状態のマシンを使って実行します。GitLabのpush ではなくbastion instanceのpullで動くところが重要です。いつかFargate対応されそうですが2019年5月時点ではまだありません。
構成 #link

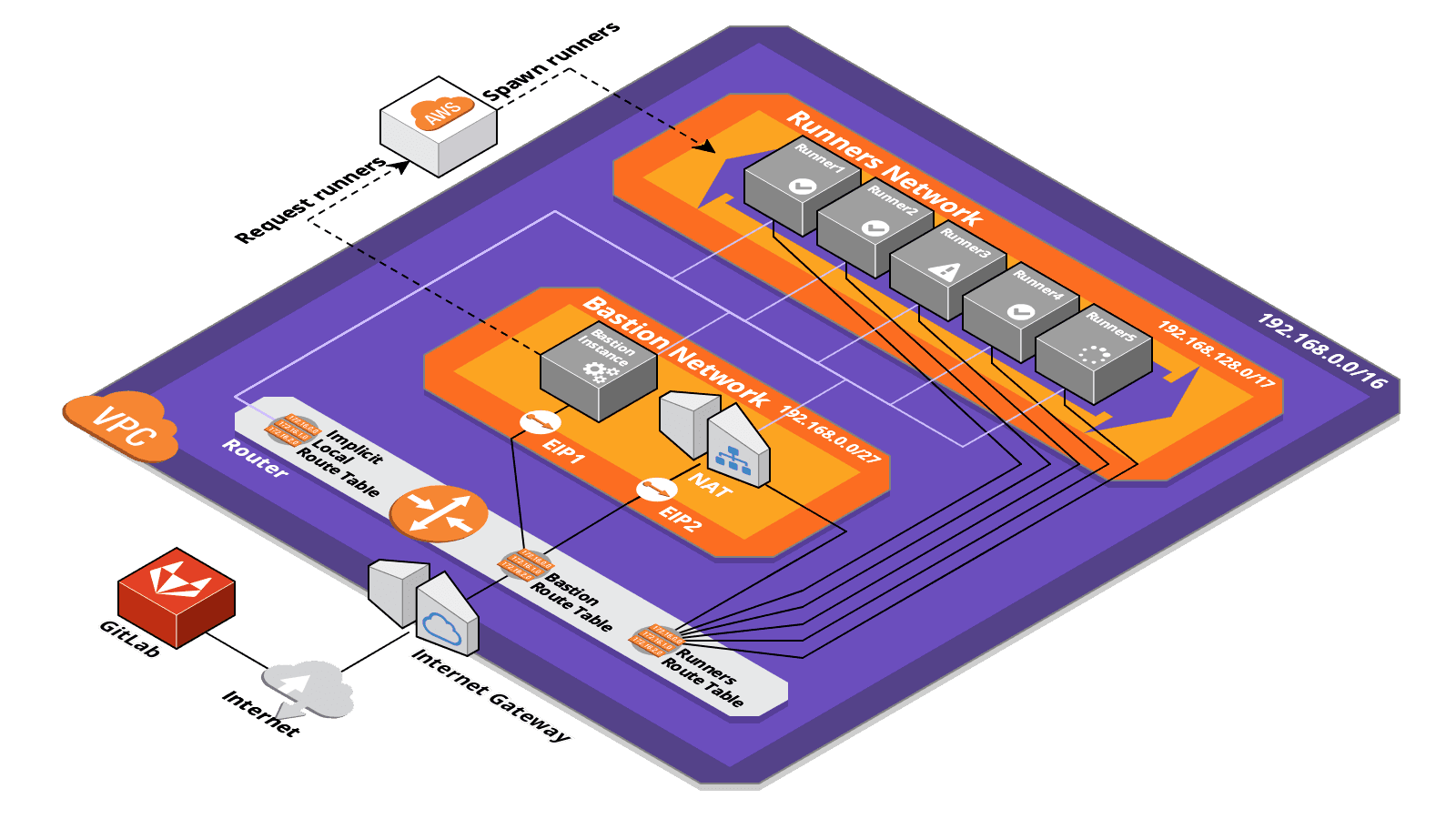

CloudCraftで描いた図を載せます。IPv6対応もしてあるのですがIPv4と同じ構成なので省略しました。Bastionをパブリックサブネット、Runnerをプライベートサブネットに分けています。
図に入れられなかったセキュリティグループの設定はこちらです。
Bastionインスタンス #link
向き | プロトコル | ポート範囲 | ソース |
---|---|---|---|
インバウンド | TCP | 22 | GitLab |
アウトバウンド | すべて | すべて | すべて |
インバウンドの22番は問題が起きたときの/var/log
の確認のために開けてあります。
Runnerインスタンス #link
向き | プロトコル | ポート範囲 | ソース |
---|---|---|---|
インバウンド | TCP | 2376 | 192.168.0.0/27(あとv6も) |
アウトバウンド | すべて | すべて | すべて |
インバウンドの2376番はBastionインスタンスがDocker Daemonとの通信で使います。インバウンドソースはBastion Networkの CIDRです。
chialab/aws-autoscaling-gitlab-runner #link
chialab/aws-autoscaling-gitlab-runner/blob/master/runner.yml
参考にしたテンプレートです。ロールの部分とBastionインスタンス(このテンプレートではManager)の部分で24時間分くらい助かりました。VPCを外から与えるのが自分のテンプレートと違うところです。
CloudFormation #link
テンプレートを載せようと思ったのですがそうもいかないので、リソースの一覧を出して詰まったところをまとめます。
CacheBucket: AWS::S3::Bucket
VPC: AWS::EC2::VPC
Ipv6VPCCidrBlock: AWS::EC2::VPCCidrBlock
InternetGateway: AWS::EC2::InternetGateway
GatewayAttachment: AWS::EC2::VPCGatewayAttachment
EgressOnlyInternetGateway: AWS::EC2::EgressOnlyInternetGateway
# Elastic IP
BastionEIP: AWS::EC2::EIP
AllowIngressFromGitLabRunnerBastion: AWS::EC2::SecurityGroupIngress
# → GitLabとの通信内容がわからないと何を許可すればいいのかわからない
NatEIP: AWS::EC2::EIP
AllowIngressFromGitLabRunnerNat: AWS::EC2::SecurityGroupIngress
# → GitLabとの通信内容がわからないと何を許可すればいいのかわからない
# Bastionサブネット関連のリソース
BastionSubnet: AWS::EC2::Subnet
BastionSubnetNatGateway: AWS::EC2::NatGateway
BastionSubnetRouteTable: AWS::EC2::RouteTable
BastionSubnetRouteV4: AWS::EC2::Route
BastionSubnetRouteV6: AWS::EC2::Route
BastionSubnetRouteTableAssociation: AWS::EC2::SubnetRouteTableAssociation
BastionSubnetAcl: AWS::EC2::NetworkAcl
# → VPCのネットワークの知識が不足していた
AllowIngressFromBastionSubnetToAllV4: AWS::EC2::NetworkAclEntry
AllowIngressFromBastionSubnetToAllV6: AWS::EC2::NetworkAclEntry
AllowEgressFromBastionSubnetToAllV4: AWS::EC2::NetworkAclEntry
AllowEgressFromBastionSubnetToAllV6: AWS::EC2::NetworkAclEntry
BastionSubnetAclAssociation: AWS::EC2::SubnetNetworkAclAssociation
BastionSecurityGroup: AWS::EC2::SecurityGroup
BastionInstanceRole: AWS::IAM::Role
BastionInstanceProfile: AWS::IAM::InstanceProfile
BastionInstance: AWS::EC2::Instance → AWS::CloudFormation::Initの設定
# → AWS::CloudFormation::Initの量が多い
# → パブリックIPアドレスの関連付けのタイミングで困った
# Runnerサブネット関連のリソース
RunnerSubnet: AWS::EC2::Subnet
RunnerSubnetRouteTable: AWS::EC2::RouteTable
RunnerSubnetRouteV4: AWS::EC2::Route
RunnerSubnetRouteV6: AWS::EC2::Route
RunnerSubnetRouteTableAssociation: AWS::EC2::SubnetRouteTableAssociation
RunnerSubnetAcl: AWS::EC2::NetworkAcl → ネットワーク
# → VPCのネットワークの知識が不足していた
AllowIngressFromBastionSubnetToRunnerSubnetV4: AWS::EC2::NetworkAclEntry
AllowIngressFromBastionSubnetToRunnerSubnetV6: AWS::EC2::NetworkAclEntry
AllowEgressFromRunnerSubnetToBastionSubnetV4: AWS::EC2::NetworkAclEntry
AllowEgressFromRunnerSubnetToBastionSubnetV6: AWS::EC2::NetworkAclEntry
RunnerSubnetAclAssociation: AWS::EC2::SubnetNetworkAclAssociation
RunnersSecurityGroup: AWS::EC2::SecurityGroup
RunnerRole: AWS::IAM::Role
RunnerInstanceProfile: AWS::IAM::InstanceProfile
スタックのパラメータでセキュリティグループidを渡してSecurityGroupIngressで作成した2つのElastic IPからの接続を許可します。「どこを許可するのか」は下の詰まったところで後述します。
詰まったところ #link
トークン #link
テンプレートで必要になるのはRunnerトークンで、これはGitLabの設定画面で確認できるRegistrationトークンとは別ですRunnerを登録した際に発行されるトークンなので、事前にGitLab APIでRunnerを登録してトークンを発行しておきます。トークンが間違っているとインスタンス作成時の疎通確認で失敗します。
AWS::CloudFormation::Init #link
AWS::CloudFormation::Initを使うとcfn-initができます。
AWS CloudFormation のメタデータの取得と解析
パッケージのインストール
ディスクへのファイルの書き込み
サービスの有効化/無効化と開始/停止
テンプレートの行数が一番多い部分になりましたが先のリポジトリのおかげで楽ができました。
ネットワーク #link
ネットワークACLとセキュリティグループの違い #link
これを把握できていなかったためACLのインバウンドを制限してしまいパッケージインストールなどの外部アクセスができなくなりました。セキュリティグループとネットワークACLの比較の以下の部分を読んで解決しました。
セキュリティグループ | ネットワークACL |
---|---|
ステートフル:ルールに関係なく、返されたトラフィックが自動的に許可されます | ステートレス:返されたトラフィックがルールによって明示的に許可されます |
ACLのインバウンドを制限すると外部へのリクエストは通れますがレスポンスが通れません。外部アクセスが必要な場合ACLインバウンドは許可します。
パブリックIPアドレスの関連付け #link
Elastic IPの関連付けはインスタンスの作成後になります。Bastionインスタンスの作成中AWS::CloudFormation::Initの設定でGitLabにリクエストを送るのですが、テンプレートで指定しているElastic IPはこの時点ではまだついていません。サブネット側でMapPublicIpOnLaunchをtrueにすると起動時にパブリックIPv4アドレスが割り当てられるのでcfn-init中も外部と通信できます。
ここまでの問題はAWSコンソールではBastionインスタンス作成時のエラーとして現れるためデバッグに時間がかかりました。
GitLabとの通信内容 #link
ジョブの中で特別なことをしない限りGitLabへの通信は以下の4種類です。
送信元 | ポート | 内容 |
---|---|---|
Bastion | 443 | ジョブを引き受ける |
Bastion | 443 | ジョブのログを送る |
Bastion | 443 | ジョブの結果を送る |
Runner (NAT) | 443 | リポジトリを GET する |
これらを止めないようにネットワークを設定すれば期待どおりに動作します。
動作確認 #link

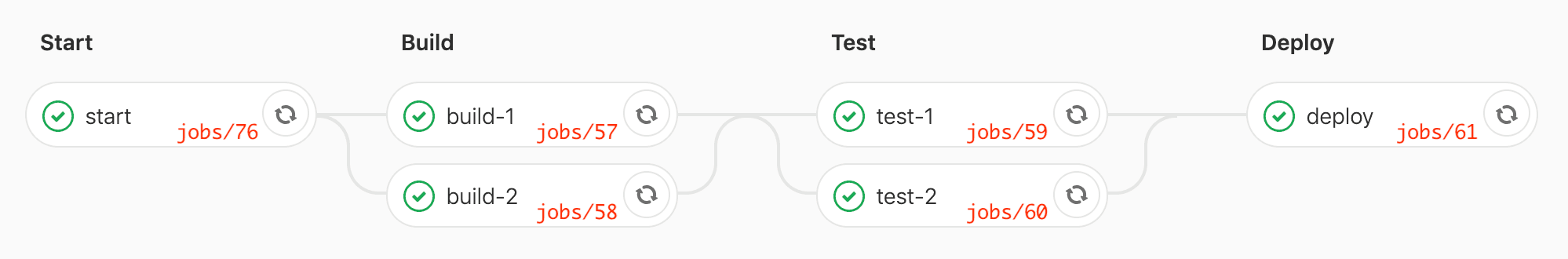

次のgitlab-ci.ymlのパイプラインを動かしてみます。
stages: [start, build, test, deploy]
start:
stage: start
script: echo start!
build-1:
stage: build
script: echo build-1!
dependencies: [start]
build-2:
stage: build
script: echo build-2!
dependencies: [start]
test-1:
stage: test
script: echo test-1!
dependencies: [build-1]
test-2:
stage: test
script: echo test-2!
dependencies: [build-2]
deploy:
stage: deploy
script: echo deploy!
dependencies: [test-1, test-2]
結果 #link
以下はログです。
一度失敗したパイプラインなのでブラウザのリトライ要求で始まります
IPアドレスとホストはマスクしています
日付は
[14/May/2019:03:27:45 +0000]
を[03:27:45]
に短くしています
MyNAT [03:27:45] "POST /GroupName/ProjectName/pipelines/10/retry.json HTTP/2.0" 204 0 "https://my-gitlab.example.com/GroupName/ProjectName/pipelines" "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_4) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/74.0.3729.131 Safari/537.36"
Bastion [03:27:46] "POST /api/v4/jobs/request HTTP/1.1" 201 5373 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:27:46] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:27:49] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:28:19] "PUT /api/v4/jobs/76 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:28:49] "PUT /api/v4/jobs/76 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:28:58] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:01] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
RunnerNAT [03:29:05] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 401 26 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:29:06] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 200 351 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:29:06] "POST /GroupName/ProjectName.git/git-upload-pack HTTP/2.0" 200 83164 "" "git/2.20.1"
Bastion [03:29:07] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:10] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:13] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:14] "PATCH /api/v4/jobs/76/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:14] "PUT /api/v4/jobs/76 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:16] "POST /api/v4/jobs/request HTTP/1.1" 201 5436 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:16] "POST /api/v4/jobs/request HTTP/1.1" 201 5436 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:19] "PATCH /api/v4/jobs/57/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:19] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:22] "PATCH /api/v4/jobs/57/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
RunnerNAT [03:29:22] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 401 26 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:29:22] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 200 351 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:29:22] "POST /GroupName/ProjectName.git/git-upload-pack HTTP/2.0" 200 83164 "" "git/2.20.1"
Bastion [03:29:25] "PATCH /api/v4/jobs/57/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:28] "PATCH /api/v4/jobs/57/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:31] "PATCH /api/v4/jobs/57/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:31] "PATCH /api/v4/jobs/57/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:31] "PUT /api/v4/jobs/57 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:33] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:36] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:39] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:42] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:45] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:48] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:49] "PUT /api/v4/jobs/58 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:51] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:54] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:29:57] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:00] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:03] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:06] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:09] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:12] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:15] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:18] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:19] "PUT /api/v4/jobs/58 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:21] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:24] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:27] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:30] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:31] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:33] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:34] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:36] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:37] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
RunnerNAT [03:30:38] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 401 26 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:30:38] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 200 351 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:30:38] "POST /GroupName/ProjectName.git/git-upload-pack HTTP/2.0" 200 83164 "" "git/2.20.1"
Bastion [03:30:39] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:40] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:42] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:43] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:45] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:46] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:46] "PATCH /api/v4/jobs/58/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:46] "PUT /api/v4/jobs/58 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:49] "POST /api/v4/jobs/request HTTP/1.1" 201 5431 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:49] "POST /api/v4/jobs/request HTTP/1.1" 201 5431 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:52] "PATCH /api/v4/jobs/59/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:52] "PATCH /api/v4/jobs/60/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:55] "PATCH /api/v4/jobs/59/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:55] "PATCH /api/v4/jobs/60/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
RunnerNAT [03:30:55] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 401 26 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:30:55] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 200 351 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:30:55] "POST /GroupName/ProjectName.git/git-upload-pack HTTP/2.0" 200 83169 "" "git/2.20.1"
RunnerNAT [03:30:55] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 401 26 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:30:55] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 200 351 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:30:56] "POST /GroupName/ProjectName.git/git-upload-pack HTTP/2.0" 200 83164 "" "git/2.20.1"
Bastion [03:30:58] "PATCH /api/v4/jobs/59/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:30:58] "PATCH /api/v4/jobs/60/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:01] "PATCH /api/v4/jobs/59/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:01] "PATCH /api/v4/jobs/60/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:04] "PATCH /api/v4/jobs/59/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:04] "PATCH /api/v4/jobs/60/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:04] "PATCH /api/v4/jobs/59/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:04] "PUT /api/v4/jobs/59 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:04] "PATCH /api/v4/jobs/60/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:04] "PUT /api/v4/jobs/60 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:07] "POST /api/v4/jobs/request HTTP/1.1" 201 5493 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:07] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:09] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:10] "PATCH /api/v4/jobs/61/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:12] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:13] "PATCH /api/v4/jobs/61/trace HTTP/1.1" 202 7 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
RunnerNAT [03:31:13] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 401 26 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:31:13] "GET /GroupName/ProjectName.git/info/refs?service=git-upload-pack HTTP/2.0" 200 351 "" "git/2.20.1"
RunnerNAT - gitlab-ci-token [03:31:13] "POST /GroupName/ProjectName.git/git-upload-pack HTTP/2.0" 200 83164 "" "git/2.20.1"
Bastion [03:31:15] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:16] "PATCH /api/v4/jobs/61/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:18] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:19] "PATCH /api/v4/jobs/61/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:21] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:22] "PATCH /api/v4/jobs/61/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:22] "PATCH /api/v4/jobs/61/trace HTTP/1.1" 202 8 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:22] "PUT /api/v4/jobs/61 HTTP/1.1" 200 4 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:24] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:27] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
Bastion [03:31:30] "POST /api/v4/jobs/request HTTP/1.1" 204 0 "" "gitlab-runner 11.10.1 (11-10-stable; go1.8.7; linux/amd64)"
IdleTimeを300秒、IdleCountを0に設定していたため、2台のマシンは5分後にそれぞれシャットダウンされました。
ジョブ57と58は同じステージなので並行に実行されるはずですが、58は57 よりも後に実行されています。これはBuildステージに入った時にアイドル状態だったマシンがジョブ76を実行していた1台だけだったからです。ジョブ57は既存マシンに割り当てられたため開始が早く、ジョブ58は新しいマシンの起動を待つため開始が遅れました。次のTestステージではBuildステージで使った2台のマシンがアイドル状態で存在していたので同時に始まっています。
